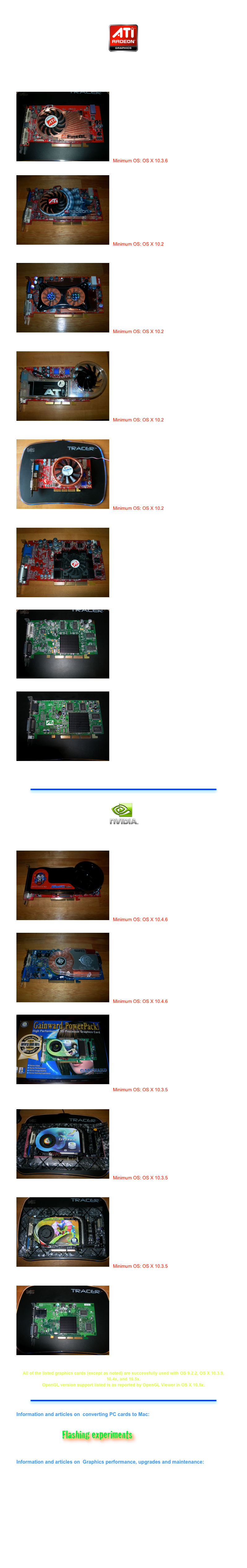

The following are pictures and specs of some of the cards that I use or have used. Be sure to check out the articles linked at the bottom of the page.  ATI Radeon Graphics Cards ATI FireGL X800 XT AGP: 4x, 8x GPU (R420) Clock: 500 MHz Memory Clock: 500 MHz (1000 MHz)DDR3 Bandwidth: 32 GB/s Pixel Pipelines: 16 Bus: 256 bit ROM: v109 Dual DVI output VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: ATI OEM fan Minimum OS: OS X 10.3.6 ATI Radeon 9800 XT AGP: 4x, 8x GPU (R360) Clock: 412 MHz Memory Clock: 365 MHz (730 MHz)DDR2 Bandwidth: 23.4 GB/s Pixel Pipelines: 8 Bus: 256 bit ROM: v130 (v118 Analog only) VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: ATI OEM fan Minimum OS: OS X 10.2 Asus Radeon 9800 XT AGP: 4x, 8x GPU (R360) Clock: 412 MHz Memory Clock: 365 MHz (730 MHz)DDR2 Bandwidth: 23.4 GB/s Pixel Pipelines: 8 Bus: 256 bit ROM: 128K v130 (v118 Analog only) VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: Asus (Copper Heat Pipe) Minimum OS: OS X 10.2 ATI Radeon 9800 Pro Mac Edition AGP: 2x, 4x, GPU (R350) Clock: 378 MHz Memory Clock: 337.5 MHz (675 MHz)DDR2 Bandwidth: 22.4 GB/s Pixel Pipelines: 8 Bus: 256 bit ROM: v134 VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: ATI Silencer 1 rev. 2 Minimum OS: OS X 10.2 ATI Radeon 9800 Pro (Flashed PC edition) AGP: 2x, 4x, 8x GPU (R350) Clock: 378 MHz Memory Clock: 337.5 MHz (675 MHz)DDR2 Bandwidth: 21.7 GB/s Pixel Pipelines: 8 Bus: 256 bit ROM: 128K v130 VRAM: 128 MB OpenGL: v 2.1 and lower Cooling: Zalman VF900-Cu Heatpipe Minimum OS: OS X 10.2 ATI Radeon 9700 Pro (Flashed PC edition) AGP: 2x, 4x, 8x GPU (R300) Clock: 325 MHz Memory Clock: 310 MHz (620 MHz)DDR2 Bandwidth: 19.8 GB/s Pixel Pipelines: 8 Bus: 256 bit ROM: 128K v130 VRAM: 128 MB OpenGL: v 2.1 and lower Cooling: OEM Fan ATI Radeon 9000 Pro Mac Edition (Retail) AGP: 2x, 4x GPU R200 (RV250) Clock: 274.5 MHz Memory Clock: 249.45 MHz DDR Bandwidth: 8.8 GB/s Pixel Pipelines: 4 Bus: 128 bit ROM: v142 VRAM: 64 MB OpenGL: v1.3 and lower Cooling: Passive Apple Radeon 7500 AGP: 2x, 4x GPU R100 (RV200) Clock: 290 MHz Memory Clock: 230 MHz DDR Bandwidth: 7.4 GB/s Pixel Pipelines: 2 Bus: 128 bit ROM: v1.3 and lower VRAM: 32 MB OpenGL: v and lower Cooling: Passive   Nvidia Geforce Graphics Cards Gainward Bliss 7800GS (Flashed PC edition) AGP: 4x, 8x GPU (N70) Clock: 425 MHz Memory Clock: 600 MHz (1200 MHz)GDDR3 Bandwidth: 38.4 GB/s Pixel Pipelines: 20 Bus: 256 bit ROM: 128K v2150.2 VRAM: 512 MB OpenGL: v 2.1 and lower Cooling: Arctic Cooling Minimum OS: OS X 10.4.6 BFG 7800GS OC (Flashed PC edition) AGP: 4x, 8x GPU (N70) Clock: 400 MHz Memory Clock: 625 MHz (1250 MHz)GDDR3 Bandwidth: 40 GB/s Pixel Pipelines: 16 Bus: 256 bit ROM: v2150 VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: BFG Minimum OS: OS X 10.4.6  Gainward Geforce 6800 Ultra (Flashed PC edition) AGP: 4x, 8x GPU (N40) Clock: 400 MHz Memory Clock: 550 MHz (1100 MHz)GDDR3 Bandwidth: 35.2 GB/s Pixel Pipelines: 16 Bus: 256 bit ROM: v2130 VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: Cooler Master Minimum OS: OS X 10.3.5 Inno3D Geforce 6800 GT (Flashed PC edition) AGP: 4x, 8x GPU (N40) Clock: 350 MHz Memory Clock: 500 MHz (1000 MHz)GDDR3 Bandwidth: 32 GB/s Pixel Pipelines: 16 Bus: 256 bit ROM: v2121m VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: Cooler Master Minimum OS: OS X 10.3.5 POV Geforce 6800 GT (Flashed PC edition) AGP: 4x, 8x GPU (N40) Clock: 350 MHz Memory Clock: 500 MHz (1000 MHz)GDDR3 Bandwidth: 32 GB/s Pixel Pipelines: 16 Bus: 256 bit ROM: v2121m VRAM: 256 MB OpenGL: v 2.1 and lower Cooling: Cooler Master Minimum OS: OS X 10.3.5 Apple Geforce4 MX AGP: 2x, 4x GPU (NV17) Clock: 270MHz Memory Clock: 400 MHz DDR Bandwidth: 6.4GB/s Pixel Pipelines: 2 Bus: 128 bit ROM: v1091 VRAM: 64 MB OpenGL: v1.1 and lower Cooling: Passive All of the listed graphics cards (except as noted) are successfully used with OS 9.2.2, OS X 10.3.9, 10.4x, and 10.5x. OpenGL version support listed is as reported by OpenGL Viewer in OS X 10.5x.  Information and articles on converting PC cards to Mac:  Information and articles on Graphics performance, upgrades and maintenance: Graphics Card Benchmarks G4 AGP Graphics Card Upgrades: Part 1- OS 9 G4 (and G5) AGP Graphics Card Upgrades: Part 2- OS X PCIe Graphics Upgrades for the Dual Core G5 Graphics Card Cleaning and Thermal Compound Replacement Radeon 9800 Pro Heat sink Disassembly Radeon 9800 XT Disassembly Blog/D48C95C0-D247-4F42-AFBD-FC43304857F3.htmlFlashing.htmlPage%201%3A%20OpenGL%20.htmlBlog/8923D90A-7AD8-41F1-BD1A-FEA5E1780B95.htmlBlog/4B4B7BA2-7ABB-47F1-87AC-B03D37942BEE.htmlBlog/71BBF3EF-9713-4C53-8B80-26771F8A4087.htmlBlog/16196A0F-952B-47ED-A9F9-91F7B0ECA431.htmlBlog/C874D84E-96DD-4DFF-9566-7C66BE065BB5.htmlBlog/AF6A8D44-7864-4F5A-A45A-DB56A8663B45.htmlshapeimage_1_link_0shapeimage_1_link_2shapeimage_1_link_3shapeimage_1_link_4shapeimage_1_link_5shapeimage_1_link_6shapeimage_1_link_7shapeimage_1_link_8
Graphics Cards
